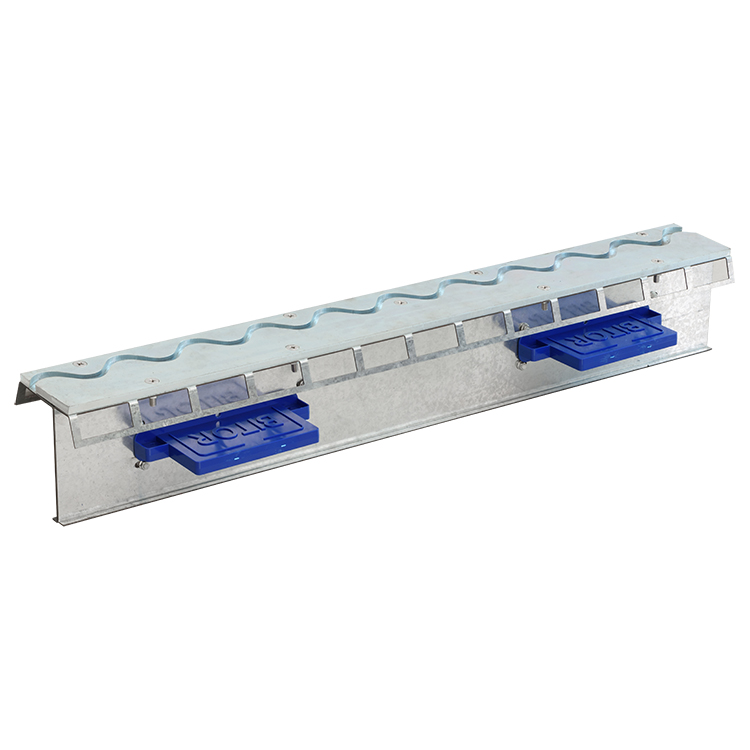

Armoured Floor Joint System

Our armor joint with steel plate on top is a zero impact arris protection, leave-in-place formwork, load transfer and sealant-free joint system suitable for heavy duty industrial concrete floors.

It is an excellent solution for high traffic areas such as loading docks, doorways or VNA aisles where a seamless floor is required. The shape of the wave is engineered such that even the smallest wheeled pallet trucks do not cause an impact. A floor can be future proofed for other end uses by installing armor joint.

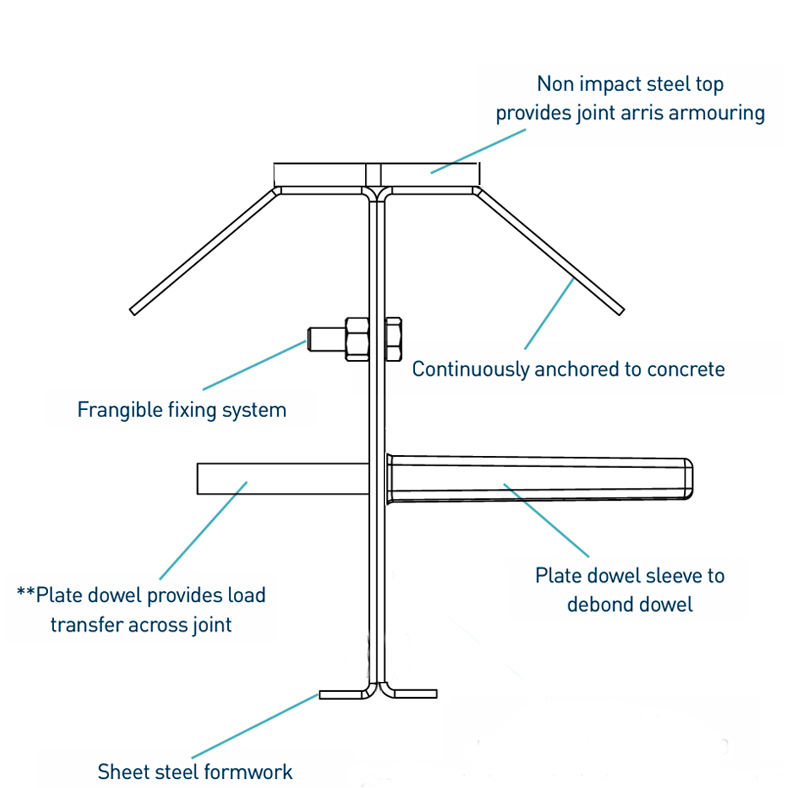

The joint system comprises two top wave plates, a divider plate, load transfer plate dowels and sleeves.

Formwork for casting a concrete slab is achieved by the vertical divider plate which supports the top wave plate edge protection and load transfer plate dowels.

Slab arris protection is provided by way of the top wave plates which create a seamless floor thus eliminating impact loads when traversed. The top wave plates are anchored to the concrete by perforated angled wings.

Material: Hot Rolled and Cold Rolled Steel , also can be supplied in stainless steel for hot-dip galvanized as customized by different needs.

Load transfer plate dowel: 6mm, 8mm, 10mm, 12mm in Q355, also can be supplied in stainless steel for hot-dip galvanized as customized by different needs.

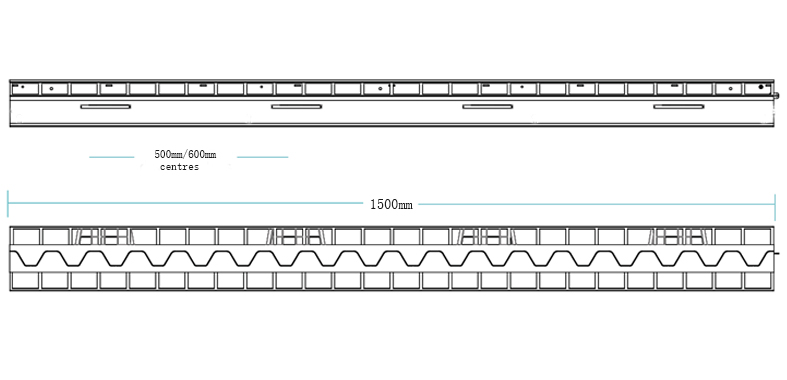

Joint length：3000mm +/-2.0mm

Straightness: +/-1mm in 1000mm
